Quick Instruments

FPGA based embedded functional test and measurement platform

Quick Instruments is a groundbreaking technology developed by Testonica. Testonica Lab is an Estonian R&D company acting in the sectors of Information Technologies and Electronics Production. TECOSERV is the Testonica partner in the Asia-Pacific region.

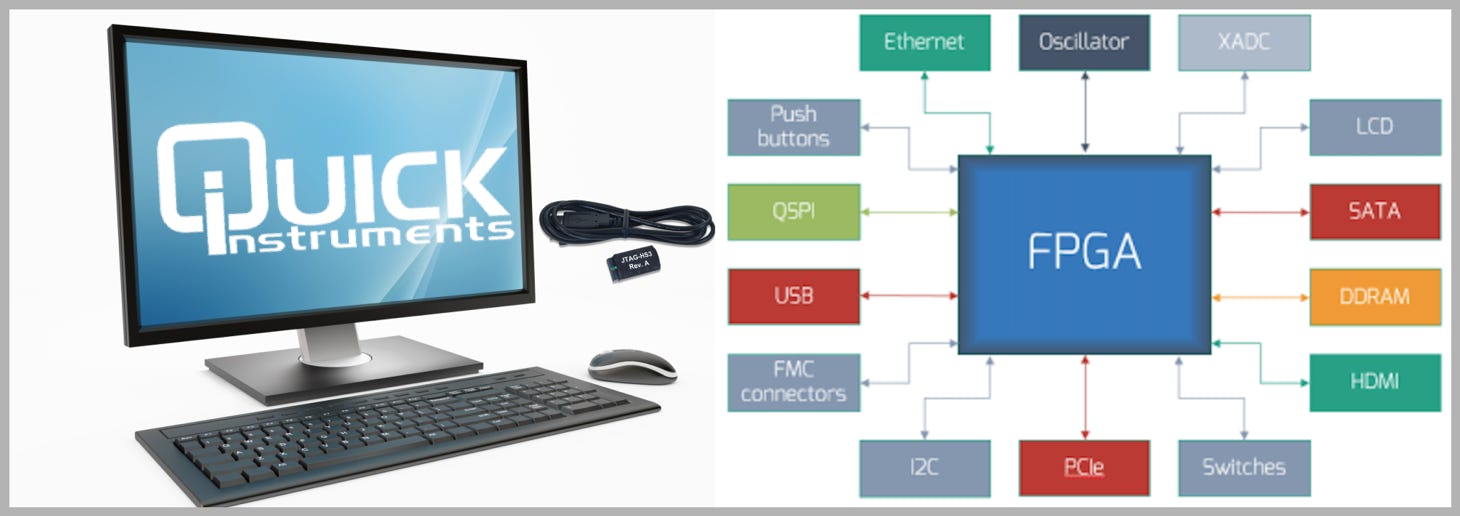

Quick Instruments provide an extensive set of FPGA embedded and software instruments to perform the appropriate tests. The respective configuration of the FPGA will be done via the JTAG Interface.

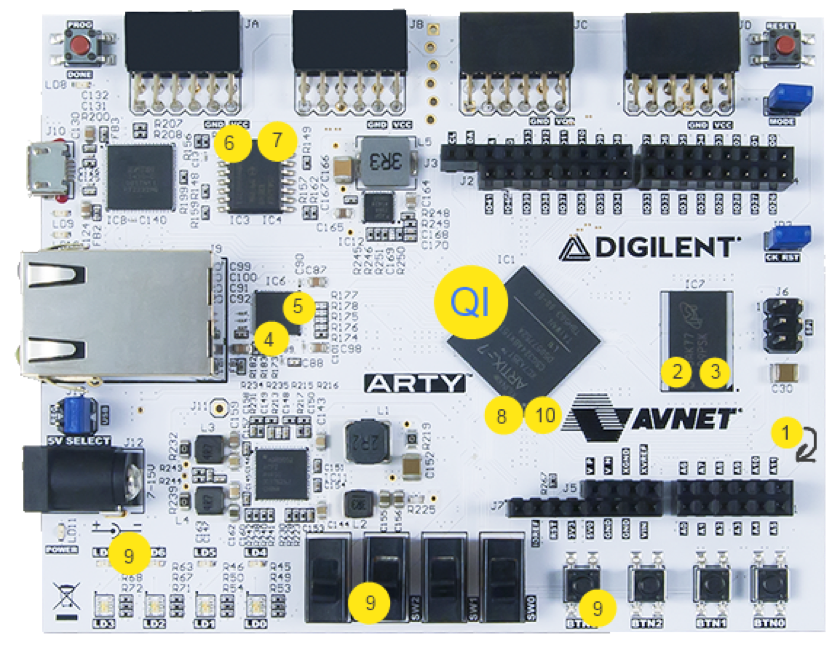

Example (Test of ARTY A7 Development Board)

To familiarise yourself with the Quick Instruments, let's start with an example: We recommend using the ARTY A7 Development Board from Digilent, which can be purchased either directly from Digilent or via Mouser.  This board was developed for the Artix-7-FPGA and contains typical components and interfaces such as DDR memory, SPI flashes, an Ethernet interface as well as various jumpers, switches and LEDs.

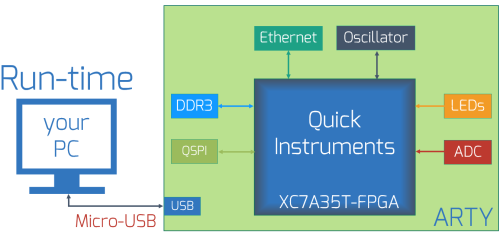

The setup for the demo:

A special feature here is that the board contains an USB to JTAG converter, so only a standard micro USB cable is required to connect it to the PC. In this case the USB interface is also used to power the board.

The required demo runtime software for the PC can be downloaded free of charge from the Testonica website. The Quick Instruments required for this board are also included. Examples of how these instruments can be integrated into your own test program are also published and enable a quick start. Sample programs are available for Python, C# as well as NI Teststand or LabView.

This demo covers the following instruments:

   1.  Frequency Counter

   2.  Memory Interconnect Tester

   3.  DDR Margining Tester

   4.  Ethernet Basic Tester

   5.  Ethernet Stress Tester

   6.  SPI Tester

   7.  Flash IC Programmer (SPI)

   8.  ADC Measurement

   9.  PinTouch

10.  SVF Player

Find here the detailed Quick Start Guide to run the Instruments  (Quick Instruments website)

Overview of the various Instruments

Testonica supports various applications with their Quick Instruments, here is a first overview with a short description:

Serial Vector Files


Pattern Generator

IO conditioning IP

   IEEE 1149.8.1

IEEE 1149.6

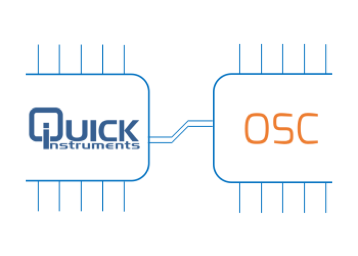

Frequency Counter

Precise frequency measurement for on-board oscillators

Measurements in the range from 1 MHz up to 500 MHz

Accurate measurements with precision up to 50 ppm

Differential and single ended clock signals supported

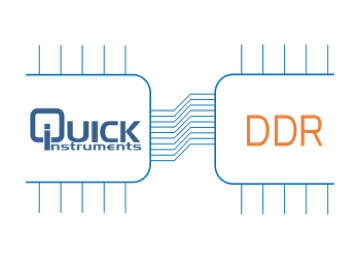

Memory Interconnect Tester

At-speed test of interconnection lines between host and DDR memory

Finds opens/shorts, delays and other timing related faults

Provides extensive diagnostic information

DDR Margining Tester (add-on)

Evaluate quality of high-speed data signals by building BER diagrams

DDR4 Connectivity Tester

Test interconnection between DDR4 memory and host device (Connectivity Test Mode)

Test covers data/address busses as well as memory control signals

Extremely fast, test time is only a few seconds

Diagnostic information is provided upon fault detection

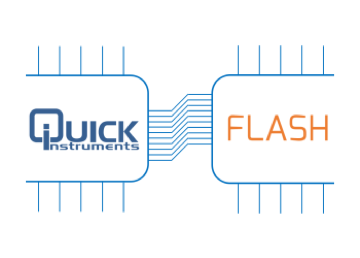

Flash IC Programmer

High-speed in-system flash programming with support of parallel or serial (SPI) flash devices

Capable to program, verify or read-out data

Performs blank check, sector erase and chip erase operations

Reads or verifies flash chip ID and flash manufacturer ID

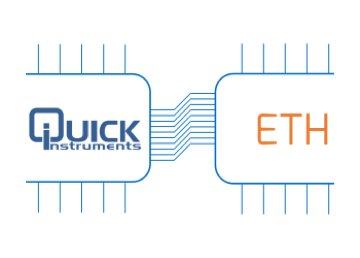

Ethernet Basic Tester

Functional and structural tests for Ethernet links on a board

Supports GMII/RGMII/RMII/MII interfaces and 1000/100/10Mbps link speeds

Test for Ethernet PHY presence and operation

Structural at-speed test for opens/shorts/delays

Supports external/internal loopback test, PHY-to-PHY test or PHY-to-PC test

Automatically configures Ethernet PHY over MDIO interface

Ethernet Stress Tester (add-on)

Functional stress tests for Ethernet links on a board by measuring Frame Error Rate

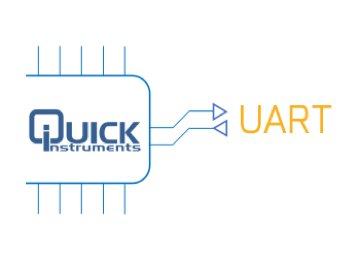

UART Tester

Check your UART communication link

Sends and/or receives data over UART links, intended to test

UART/RS232/RS485/etc interfaces

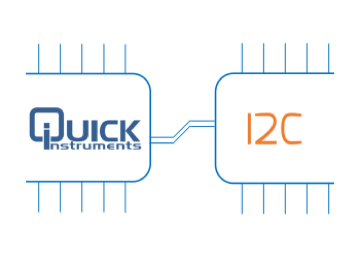

I2C Tester

Communicate with on-board I2C devices

Single/multiple bytes read/write

Automatic scan of I2C bus (enumerates all connected I2C slave devices)

Read out values from on-board temperature sensor

Configure on-board power manager over I2c, etc.

SPI Tester

Communicate with SPI and Quad SPI devices

Interfacing with SPI slave devices

Write and read bytes via SPI protocol

Different communication modes (CPOL/CPHA) are supported

ADC measurement

Perform analog measurement using built-in analog-to-digital converters

On-chip monitoring of supply voltages and temperature

Measurement of analog values on external pins of FPGA ADC

Configure various parameters of ADC

SVF player

An easy-to-use tool for playing SVF files

A solution to program CPLDs via SVF files

Control Boundary Scan devices

Perform other arbitrary user-defined actions on JTAG bus

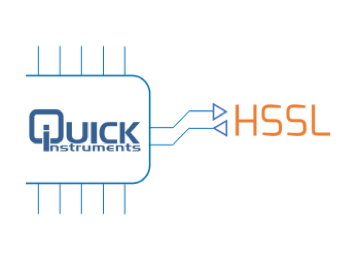

Bit Error Rate Tester (BERT)

Evaluates the quality of high-speed serial links (HSSL)

Calculates bit-error rate (BER) for a high-speed serial link

The test is done on a physical layer

Multi-gigabit rates are supported

Non-intrusive. Test results from inside

Measurement takes only several seconds

Eye BERT with Mask (add-on)

Fully-automated quality check for high-speed serial links by measuring BER eye diagram

PCI Express BERT (add-on)

Evaluates the quality of PCIe serial links and board-to-board connections

Ethernet 10G/40G BERT (add-on)

Evaluates the quality of serial links that use 10G/40G Ethernet protocols

SDI BERT (add-on)

Evaluates the quality of serial links that use SDI protocol

JESD204 BERT (add-on)

Evaluates the quality of serial links that use JESD204 protocol

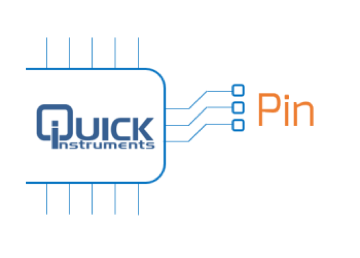

Test on-board LEDs, switches, push buttons and pin-to-pin connections

Drive a single pin High or Low

Measure value on a pin

Switch on/off and blink LEDs, check simple LCD displays

Test pus-buttons, switches, jumpers, presence of pull resistors, etc.

Check a pin-to-pin connection between two Boundary Scan devices

Digital Pattern Generator

Generate high-speed pattern out of FPGA

Generates digital pattern of predefined length on FPGA’s any digital output pin

IO conditioning IP

Set electrical parameters on arbitrary pins for correct signal conditioning

Setting of correct termination

Setting of I/O standard, static HIGH or LOW value

IEEE 1149.8.1 / 1149.6 Instruction support

Emulate IEEE 1149.8.1 or IEEE 1149.6 standards on FPGA pins

EXTEST_TRAIN and EXTEST_PULSE emulation (IEEE 1149.6)

SELECTIVE_TOGGLE emulation (IEEE 1149.8.1)

Find out more details about the Quick Instruments  (Quick Instruments website)
