Embedded JTAG Solutions (Boundary Scan)

Since the introduction of the 1149.1 standard in 1990, GOEPEL electronics has been working on hardware and software solutions that use the JTAG interface to test board connections and functions.

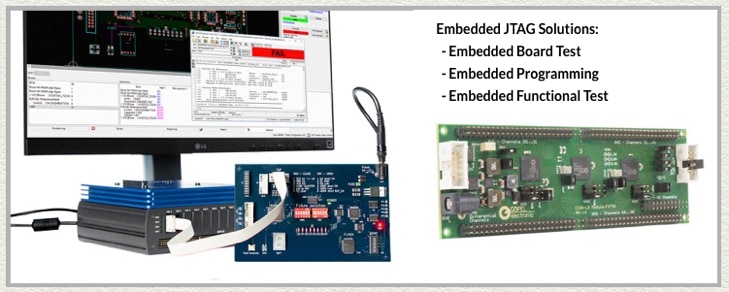

Over the years, further expansions of the standard and test technologies were added, which are now summarized under the term Embedded JTAG Solutions.

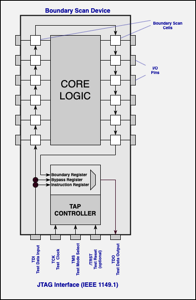

JTAG/Boundary Scan (Standard IEEE 1149.1) is possibly the most resourceful test access technique around. Similar to In-Circuit Test (ICT), but without physical bed of-nail adapters, it detects structural fault locations by utilising thousands of test points - with only four test bus lines.

more about the JTAG/Boundary Scan test technology



Based on the JTAG/Boundary Scan test technology several tests can be generated automatically by a Boundary Scan Test System after the import of the CAD data of the board. Of course, also manually written tests could be added to further improve the test coverage.

more about Boundary Scan Tests


In addition to the test, the JTAG interface can also be used to program PLDs and Flash devices or to configure FPGAs.

more about In-System Programming

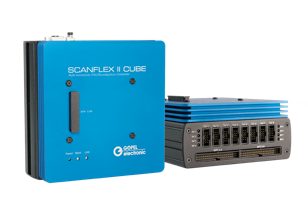

Depending on your requirements TECOSERV can help you to select the right Boundary Scan System. TECOSERV cooperates with GOEPEL electronics.

more about Boundary Scan Test Systems


Depending on your requirements TECOSERV can help you to select the right Boundary Scan Software. TECOSERV cooperates with GOEPEL electronics.

more about SYSTEM CASCON (Software)
